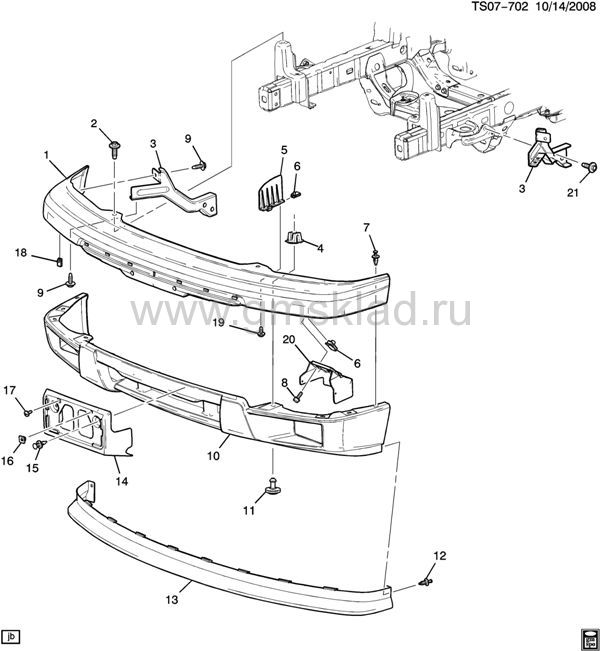

(TS07-702) 2009-2012 ST БАМПЕР ПЕРЕДНИЙ
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 19209326 | BAR, FRT BPR IMP (INCLS 3, 9, 18, 19) (PAINT TO MATCH) (ELPO COATED) | ST1 | 2004-2012 | 01 | | узнать цену | | 001 | 19210442 | BAR, FRT BPR IMP (INCLS 3, 9, 18, 19) (CHROME) (INCLS BRACES) | ST1 | 2004-2012 | 01 | | узнать цену | | 002 | 11518624 | BOLT, HFH, M10X1.5X30.4, 22.5 THD, 22.3 O.D., 10.9, GMW3359 (FRT BPR IMP BAR) | | 2005-2012 | 08 | | узнать цену | | 003 | | BRACE, FRT BPR IMP BAR (PART OF 1) | | 2009-2012 | | | | | 004 | 15733970 | RETAINER, FRT BPR IMP BAR EXTN (BLACK) (16MM) (SCREW NUT) (7.833) | ST1 | 2004-2012 | 09 | | узнать цену | | 005 | 15176921 | DEFLECTOR, FRT BPR FASCIA AIR | ST1 | 2004-2012 | 02 | | узнать цену | | 006 | 11503317 | NUT (FRT BPR FASCIA AIR) | | 2004-2012 | 06 | | узнать цену | | 007 | 11519444 | RETAINER, PUSH PIN, 10.0 HEADX26.0, 10.0 HOLE, PNL THK 6.2-8.71, NY 6.6 (FRT BPR IMP BAR) | | 2004-2012 | 02 | | узнать цену | | 008 | 11514623 | BOLT, HEX W/CON WA, M6X1X20 (FRT FOG LP BRKT) | | 2004-2012 | 04 | | узнать цену | | 009 | 11570082 | BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (PART OF 1) (ACDelco #11570082) | | 2004-2012 | 06 | | узнать цену | | 010 | 12335805 | FASCIA, FRT BPR (GRAY) (CUT FOG LAMP HOLES AS NEEDED) | ST1 (T96) (EXC PFL) | 2009-2012 | 01 | | узнать цену | | 010 | 12335806 | FASCIA, FRT BPR (GRAY) (W/O FOG LP OPENINGS) | ST1 (EXC B4U, T96) | 2009-2012 | 01 | | узнать цену | | 010 | 19181761 | FASCIA, FRT BPR (PAINT TO MATCH) | ST1 (CBN, PFL) | 2011-2012 | 01 | | узнать цену | | 011 | 15733971 | RETAINER, FRT BPR FASCIA (13MM) (1.272) | ST1 | 2004-2012 | 09 | | узнать цену | | 012 | 11519444 | RETAINER, PUSH PIN, 10.0 HEADX26.0, 10.0 HOLE, PNL THK 6.2-8.71, NY 6.6 (FRT BPR FASCIA EXTN) | | 2004-2012 | 02 | | узнать цену | | 013 | 15888037 | EXTENSION, FRT BPR FASCIA (BLACK) | ST1 | 2004-2012 | 01 | | узнать цену | | 014 | 20890834 | BRACKET, FRT LIC PLT | ST1 (VK3) | 2008-2012 | 01 | | узнать цену | | 015 | 11518017 | RETAINER, 25 LG, 20.5 OD, 8.0 HOLE, 6.2-8.2 PNL, NYLON, 6/6, BLK (FRT BPR FASCIA (PUSH IN)) | | 2004-2012 | 02 | | узнать цену | | 016 | 03907444 | NUT, PUSH IN, SQUARE, UN THD, M9.5 SQ HOLE, NYLON (FRT LIC PLT NUT HOLE) | | 2004-2012 | 02 | | узнать цену | | 017 | 09423101 | SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (RR LIC PLT) | | 2004-2012 | 02 | | узнать цену | | 018 | | NUT, FRT BPR FRM EXTN (PART OF 1) | | 2009-2012 | | | | | 019 | | BOLT, FRT BPR BAR (PART OF 1) | | 2009-2012 | | | | | 020 | | BRACKET, FRT FOG LP | | 2009-2012 | | | | | 021 | 11589166 | BOLT, HEX W/CON WA, M10X1.5X39.8, 25.45 THD, 28 OD, 10.9, GMW3359, M-PT (FRT BPR IMP BAR) | | 2004-2012 | 08 | | узнать цену |
|
|
