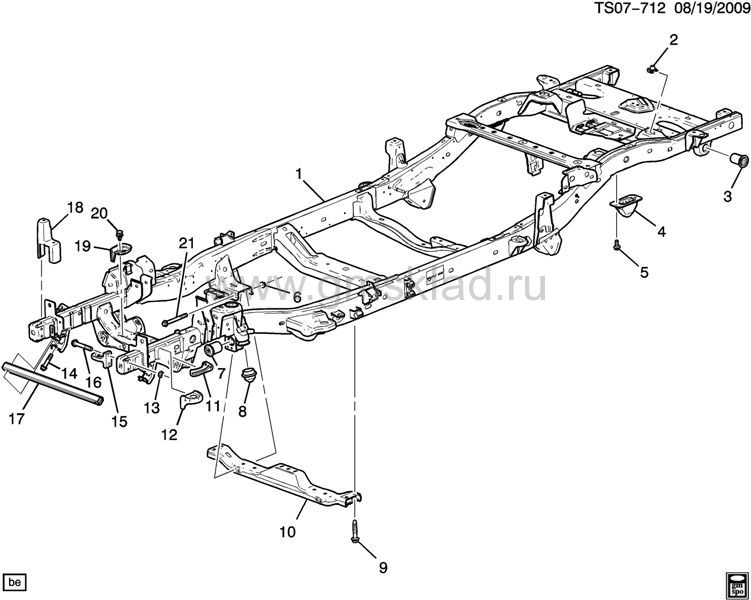

(TS07-712) 2010-2012 ST РАМА (OFF ROAD Z71)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 20762957 | FRAME, CHASSIS (INCLS 2-13, 15, 16, 18-21) | ST156 (53) (LH9, Z71) | 2010-2012 | 01 | | узнать цену | | 001 | 20762959 | FRAME, CHASSIS (INCLS 2-13, 15, 16, 18-21) | ST1 (53) (LLR, Z71) | 2010-2012 | 01 | | узнать цену | | 002 | 15658213 | NUT, RR S/ABS (PART OF 1) (M8X1.25, 11.1) (U-NUT) | ST1 | 2010-2012 | 02 | | узнать цену | | 003 | 14027938 | BUSHING, RR SPR SHKL (PART OF 1) | ST1 | 2010-2012 | 02 | | узнать цену | | 004 | 15163532 | BUMPER, RR SUSP JOUNCE (PART OF 1) (76.0MM HEIGHT) (BOTTOM OF FRAME RAIL) | T1 (Z71) | 2010-2012 | 02 | | узнать цену | | 005 | 11518294 | BOLT, HFH, M10X1.5X29.5, 17.08 OD, 6202M, 4435M, TAP, TR-PT (PART OF 1) | | 2010-2012 | 04 | | узнать цену | | 006 | | NUT, TRANS SUPT C/MBR (PART OF 1) | | 2010-2012 | | | | | 007 | 15088366 | BUSHING, FRT LWR CONT ARM (REAR) (PART OF 1) (POA THE FRAME) | ST1 | 2010-2012 | 02 | | узнать цену | | 008 | 25890839 | BUMPER, FRT LWR CONT ARM (PART OF 1) | ST156 (43-53) (LH9, Z71) | 2010-2012 | 02 | | узнать цену | | 008 | 15185280 | BUMPER, FRT LWR CONT ARM (PART OF 1) (7.395) | ST1 (43-53) (LLR, Z71) | 2010-2012 | 02 | | узнать цену | | 009 | 11519961 | BOLT, HFH M12X1.75X75, 28.25 THD, 26.6 OD, 10.9, 7114M, MACH, HDR-PT (PART OF 1) | | 2010-2012 | 04 | | узнать цену | | 010 | 15076524 | CROSSMEMBER, TRANS SUPT (PART OF 1) | ST1 (Z71) | 2010-2012 | 01 | | узнать цену | | 011 | 88965521 | BRACE, FRT BPR IMP BAR ANC PLT (PART OF 1) | ST1 (43-53) (LH9, ZQ8, Z71, Z85) | 2010-2012 | 01 | L | узнать цену | | 011 | 88965522 | BRACE, FRT BPR IMP BAR ANC PLT (PART OF 1) | ST1 (43-53) (LH9, ZQ8, Z71, Z85) | 2010-2012 | 01 | R | узнать цену | | 012 | 15078470 | BRACKET, BODY MT (PART OF 1) (DEALER TO ELONGATE ROUND HOLE) | ST1 | 2010-2012 | 02 | | узнать цену | | 013 | 11514598 | NUT, HEX FLANGE, M12X1.75X12, 26 OD, 10, 7111M, (PART OF 1) | | 2010-2012 | 04 | | узнать цену | | 014 | 11519174 | BOLT, HFH, W/REDUCED BODY, M8X1.25X65, THD 22, O.D. 18, 8.8, GMW3359 (FRT C/MBR) | | 2010-2012 | 02 | | узнать цену | | 015 | 15163526 | HOOK, FRT TOW (PART OF 1) | ST1 | 2010-2012 | 02 | | узнать цену | | 016 | 11589282 | BOLT, HFH, M12X1.75X115.9, 44.75 THD, 26.6 OD, 10.9STL, GMW3359, REDUCED BODY (PART OF 1) (0.029) | | 2010-2012 | 04 | | узнать цену | | 017 | 20760488 | CROSSMEMBER, FRT | ST1 (Z71) | 2010-2012 | 01 | | узнать цену | | 018 | 12335909 | BRACKET, FRT BPR IMP BAR (PART OF 1) | ST1 | 2010-2012 | 01 | R | узнать цену | | 018 | 12335910 | BRACKET, FRT BPR IMP BAR (PART OF 1) | ST1 | 2010-2012 | 01 | L | узнать цену | | 019 | 15163990 | DEFLECTOR, OIL FLTR DRN (PART OF 1) (INCLS 20) | ST1 (LLR) | 2010-2012 | 01 | | узнать цену | | 019 | 15163990 | DEFLECTOR, OIL FLTR DRN (PART OF 1) (INCLS 20) | ST1 (LLV) | 2010-2012 | 01 | | узнать цену | | 019 | 15164788 | DEFLECTOR, OIL FLTR DRN (PART OF 1) (INCLS 20) | ST1 (LH9) | 2010-2012 | 01 | | узнать цену | | 020 | 11589289 | RETAINER, PUSH-IN, FITS 6.5 HOLE, 2-4.5 THK PNL, NYLON 6/6 PER GMP.PA66.0 (PART OF 1, 19) | | 2010-2012 | 02 | | узнать цену | | 021 | 11609232 | BOLT, HFH, M12X1.75X75, 28.25 THD, 26.6 OD, 10.9, 7114M, MACH, HDR-PT (PART OF 1) | | 2010-2012 | 04 | | узнать цену |
|
|
