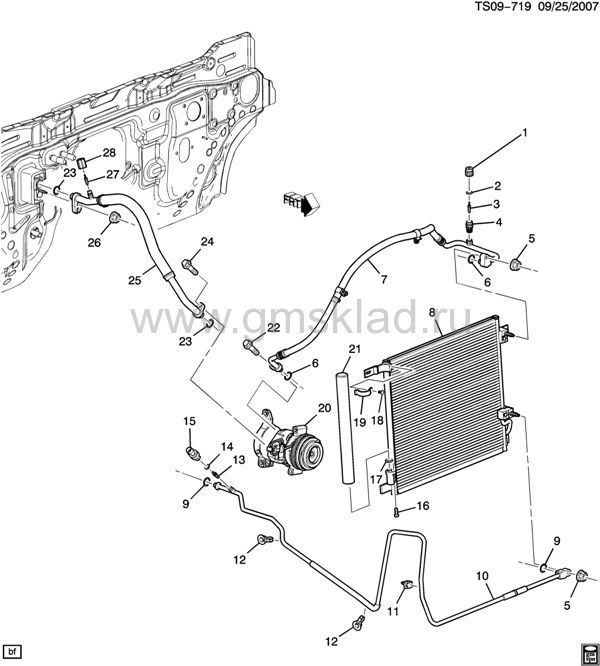

(TS09-719) 2010-2012 ST СИСТЕМА ОХЛАЖДЕНИЯ КОНДИЦИОНЕРА (LH9/5.3P)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 52458768 | CAP, A/C REFRIG SERV VLV FTG (PART OF 7) (M8X1.0) (WITH SEAL) (LONG THREADED, NON-TETHERED CAP) (ACDelco #15-33289) | ST1 (LH9, JJA) | 2010-2012 | 01 | | узнать цену | | 002 | | SEAL, A/C REFRIG SERV VLV (O RING) (PART OF 4, 7) | | 2010-2012 | | | | | 003 | | CORE, A/C REFRIG SERV VLV (PART OF 4, 7) | | 2010-2012 | | | | | 004 | 52458184 | VALVE, A/C REFRIG LOW PRESS SERV (INCLS 2, 3) (PART OF 7) (M12X1.5 THD) (INCLS FITTING & SEAL) (9.177) (ACDelco #15-5438) | ST1 (LH9, JJA) | 2010-2012 | 01 | | узнать цену | | 005 | 11514596 | NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C CNDSR) (8.915) (ACDelco #11514596) | | 2009-2012 | 02 | | узнать цену | | 006 | 52474373 | SEAL, A/C CMPR & CNDSR HOSE (PART OF 7) (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (ACDelco #15-31055) | ST1 | 2009-2012 | 02 | | узнать цену | | 007 | 15865705 | HOSE, A/C CNDSR (INCLS 1-4, 6) (ACDelco #15-33806) | ST1 (LH9, JJA) | 2010-2012 | 01 | | узнать цену | | 008 | 25964057 | CONDENSER, A/C (INCLS 16-19, 21) (ACDelco #15-63555) | ST1 (LH9, M30) | 2010-2012 | 01 | | узнать цену | | 009 | 52474373 | SEAL, A/C CMPR & CNDSR HOSE (PART OF 10) (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (ACDelco #15-31055) | ST1 | 2009-2012 | 02 | | узнать цену | | 010 | 22756852 | TUBE, A/C CNDSR & A/C EVPR (INCLS 9, 11-15) (ACDelco #15-33809) | ST1 (LH9) | 2010-2012 | 01 | | узнать цену | | 011 | 10317605 | CLIP, A/C EVPR TUBE (PART OF 10) (6.8MM HOLE) | ST1 | 2009-2012 | 01 | | узнать цену | | 012 | 15796446 | CLIP, A/C CNDSR TUBE (PART OF 10) | ST1 | 2009-2012 | 02 | | узнать цену | | 013 | 03041827 | CORE, A/C REFRIG SERV VLV (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 10) (W/O FITTING) (ACDelco #15-1119) | ST1 | 2009-2012 | 01 | | узнать цену | | 014 | 19188397 | O-RING, 7.65MM ID, 1.78 MM THK, NEOPRENE (PART OF 10) (ACDelco #15-3592) | | 2009-2012 | 01 | | узнать цену | | 015 | 22678731 | SENSOR, A/C REFRIG PRESS (PART OF 10) (HIGH PRESSURE) (ALUMINUM W/O COATING) | ST1 | 2009-2012 | 01 | | узнать цену | | 016 | 11561359 | BOLT, A/C RCVR & DEHYDR FTG (PART OF 8) | ST1 (LH9, M30) | 2010-2012 | 01 | | узнать цену | | 017 | 10399669 | SEAL, A/C RCVR & DEHYDR FTG (O RING) (PART OF 8) (ACDelco #15-33214) | ST1 (LH9, M30) | 2010-2012 | 01 | | узнать цену | | 018 | 11561360 | BOLT, A/C RCVR & DEHYDR BRKT (PART OF 8) | ST1 (LH9, M30) | 2010-2012 | 01 | | узнать цену | | 019 | 25964058 | BRACKET, A/C RCVR & DEHYDR (PART OF 8) (HOLDS ACCUMULATOR/DEHYDRATOR) | ST1 (LH9, M30) | 2010-2012 | 01 | | узнать цену | | 020 | | COMPRESSOR, A/C (SEE GROUP 09.000 "A/C COMPRESSOR ASM" FOR DETAILED ILLUSTRATED VIEW) | | 2009-2012 | | | | | 021 | 25964059 | RECEIVER & DEHYDRATOR, A/C (PART OF 8) (2 FEMALE CONNECTORS) (ACDelco #25964059) | ST1 (LH9, M30) | 2010-2012 | 01 | | узнать цену | | 022 | 11515759 | BOLT, FLG HD (M8-1.25X35)9.8 ZOR (A/C CMPR & CNDSR HOSE) | | 2009-2012 | 01 | | узнать цену | | 023 | 02724966 | SEAL, A/C CMPR TUBE (25MM OD X 17MM ID, 3/4IN DIA) (PART OF 25) (ACDelco #15-31101) | ST1 (LH9) | 2010-2012 | 02 | | узнать цену | | 023 | 13579646 | SEAL, A/C CMPR TUBE (PART OF 25) (AT A/C COMPR HOSE) | ST1 (LH9) | 2012-2012 | 02 | | узнать цену | | 024 | 11517518 | BOLT, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (A/C CMPR & CNDSR HOSE) (ACDelco #11517518) | | 2009-2012 | 01 | | узнать цену | | 025 | 25813637 | TUBE, A/C CMPR (INCLS 23, 27, 28) (ACDelco #15-33810) | ST1 (LH9) | 2010-2012 | 01 | | узнать цену | | 026 | 11514596 | NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C EVPR TUBE) (8.915) (ACDelco #11514596) | | 2009-2012 | 01 | | узнать цену | | 027 | 03041827 | CORE, A/C REFRIG SERV VLV (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 25) (W/O FITTING) (ACDelco #15-1119) | ST1 | 2009-2012 | 01 | | узнать цену | | 028 | 52471377 | CAP, A/C ACCUM HOSE FTG (PART OF 25) (BLACK) (M8X1.0MM) (LOW SIDE FILL PORT) (9.220) (ACDelco #15-32645) | ST1 | 2009-2012 | 01 | | узнать цену |
|
|
