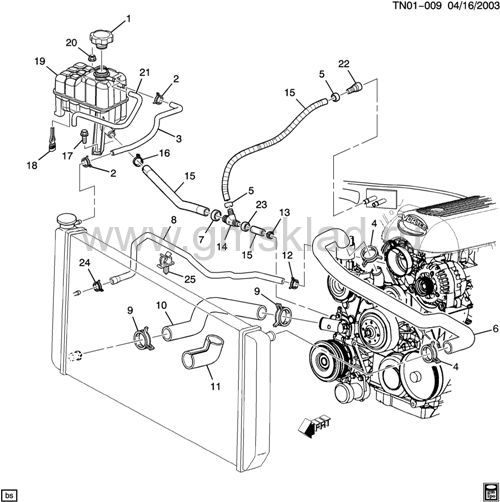

(TN01-009) - 2003 N2 ШЛАНГИ РАДИАТОРА (LQ4/6.0U)
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | 15075118 | CAP, RAD SURGE TK (15 PSI DUAL O-RING) (ENGLISH/FRENCH LABEL) (ACDelco #RC98) [КРЫШКА БАЧКА РАДИАТОРА] | N2 | 2003-2003 | 01 | узнать цену | |
| 002 | 15012559 | CLAMP, SPR (18.4MM TO 21.6MM) NOMINAL SIZE 20MM, STAMPED "20" (RAD SURGE TK INL HOSE) (1.240) | 2003-2003 | 02 | узнать цену | ||
| 003 | 15058001 | HOSE, RAD SURGE TK INL | N2 | 2003-2003 | 01 | узнать цену | |
| 004 | 11518559 | CLAMP, SPRINGBAND, 42MM NOMINAL DIA, 20 WIDTH, 6298M, 6164M (PART OF 6) [ХОМУТ ШЛАНГА РАДИАТОРА] | 2003-2003 | 02 | узнать цену | ||
| 005 | STRAP, RAD SURGE TK OTLT HOSE (PART OF 15) | 2003-2003 | |||||
| 006 | 10379176 | HOSE, RAD INL (INCLS 4) [ШЛАНГ РАДИАТОРА] | N257 (06) | 2003-2003 | 01 | узнать цену | |
| 007 | STRAP, HTR OTLT HOSE (PART OF 15) | 2003-2003 | |||||
| 008 | 15057995 | HOSE, RAD VENT INL (INCLS 12, 24, 25) | N | 2003-2003 | 01 | узнать цену | |
| 009 | 15020395 | CLAMP, RAD OTLT HOSE (PART OF 10) (42.5 MM CLOSED DIA) [ХОМУТ ШЛАНГА РАДИАТОРА] | N257 (06) (LQ4) | 2003-2003 | 02 | узнать цену | |
| 010 | 15057982 | HOSE, RAD OTLT (INCLS 9, 11, 12) (CODE UHS) | N257 (06) (LQ4) | 2003-2003 | 01 | узнать цену | |
| 011 | SLEEVE, RAD SURGE TK OTLT HOSE (PART OF 10) | 2003-2003 | |||||
| 012 | 15004599 | CLAMP, RAD SURGE TK ENG HOSE (PART OF 8, 10) (BLACK) (15MM OD 17.2MM) [ХОМУТ ТРУБОПРОВОДА] | N2 | 2003-2003 | 01 | узнать цену | |
| 013 | 11516225 | CLAMP, 25MM DIA, 15MM WIDTH, 6298 MATL (PART OF 15) | 2003-2003 | 01 | узнать цену | ||
| 014 | TEE, RAD SURGE TK OTLT HOSE (PART OF 15) | 2003-2003 | |||||
| 015 | 15058002 | HOSE, RAD SURGE TK OTLT (INCLS 5, 7, 13, 14, 16, 22, 23) (CODE 8002) | N2 | 2003-2003 | 01 | узнать цену | |
| 016 | 15059583 | CONNECTOR, HTR OTLT HOSE (PART OF 15) (74.93MM LONG) (QUICK CONNECT ASM) | N2 | 2003-2003 | 01 | узнать цену | |
| 016 | 15059584 | CONNECTOR, HTR OTLT HOSE (PART OF 15) (76.02MM LONG) (QUICK CONNECT ASM) | N2 | 2003-2003 | 01 | узнать цену | |
| 017 | 11516589 | SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (RAD SURGE TK) | 2003-2003 | 01 | узнать цену | ||
| 018 | SWITCH, LOW ENG COOL LVL (PART OF 19) | 2003-2003 | |||||
| 019 | 15808716 | TANK, RAD SURGE (INCLS 18, 21) (INCLS LOW COOLANT SENSOR & OVER FLOW HOSE) (ACDelco #15808716) [РАСШИРИТЕЛЬНЫЙ БАЧОК РАДИАТОРА] | N257 (06) | 2003-2003 | 01 | узнать цену | |
| 020 | 11508388 | ГАЙКА, HEX W/CON WA, M6X1, 23.75 O.D., 5.55THK, 9, POR (RAD SURGE TK) (8.915) | 2003-2003 | 01 | узнать цену | ||
| 021 | HOSE, RAD SURGE TK OVFL (PART OF 19) | 2003-2003 | |||||
| 022 | 15059583 | CONNECTOR, HTR OTLT HOSE (PART OF 15) (74.93MM LONG) (QUICK CONNECT ASM) | N2 | 2003-2003 | 01 | узнать цену | |
| 022 | 15059584 | CONNECTOR, HTR OTLT HOSE (PART OF 15) (76.02MM LONG) (QUICK CONNECT ASM) | N2 | 2003-2003 | 01 | узнать цену | |
| 023 | STRAP, RAD SURGE TK OTLT HOSE (PART OF 15) | 2003-2003 | |||||
| 024 | 15734742 | CLAMP, RAD SURGE TK ENG HOSE (PART OF 8) (13-16MM DIA RANGE) | N2 | 2003-2003 | 01 | узнать цену | |
| 025 | 15041309 | CLIP, RAD VENT INL HOSE (PART OF 8) | N2 | 2003-2003 | 01 | узнать цену |
