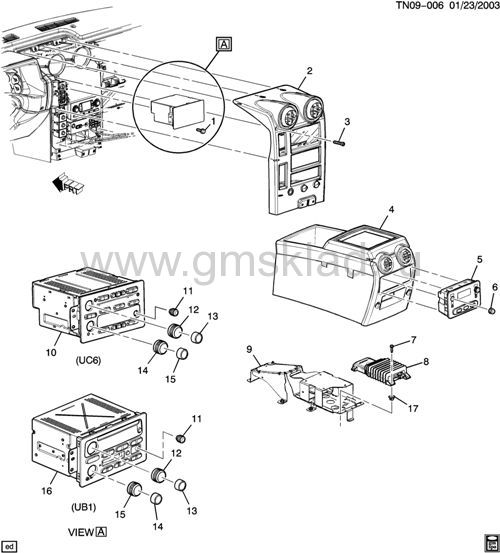

(TN09-006) - 2003 N2 AUDIO SYSTEM/RADIO & CONTROLS
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | 11589012 | БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO) (9.665) [БОЛТ М4.2Х1.41Х25] | 2003-2003 | 03 | узнать цену | ||
| 002 | 10358024 | BEZEL, I/P ACSRY (GRAY) | N2 (50I) | 2003-2003 | 01 | узнать цену | |
| 003 | 11518916 | БОЛТ, I/P ACSRY BZL (6 X 1 X 45) (9.264) [ВИНТ] | N2 | 2003-2003 | 02 | узнать цену | |
| 004 | CONSOLE, F/FLR (SEE GROUP 16.00 "FLOOR CONSOLE" FOR DETAILED VIEW) (INCLS 5) (WHEAT) (LESS REAR PNL) | N257 (06) (50I) | 2003-2003 | 01 | |||
| 005 | 15850810 | CONTROL, AM/FM STEREO & T/PLYR & CD PLYR RDO (PART OF 4) (INCLS 6) (ACDelco #15850810) [УПРАВЛЯЮЩЕЕ УСТРОЙСТВО] | N257 (06) | 2003-2003 | 01 | узнать цену | |
| 006 | 12201805 | KNOB, RDO VOL CONT (PART OF 5) (RING) | N257 (06) (UB1) | 2003-2003 | 01 | узнать цену | |
| 006 | 12205116 | KNOB, RDO VOL CONT (PART OF 5) | N257 (502, 50D) | 2003-2003 | 02 | узнать цену | |
| 007 | 11589012 | БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO SPKR AMPF) (9.665) [БОЛТ М4.2Х1.41Х25] | 2003-2003 | 04 | узнать цену | ||
| 008 | 15112662 | AMPLIFIER, RDO SPKR (CLASS 2 AMP W/DSP MODES; ID W/OEM P/N 15112662) (ACDelco #15112662) [УСИЛИТЕЛЬ КОЛОНОК] | N257 (06) | 2003-2003 | 01 | узнать цену | |
| 009 | BRACKET, AMP | 2003-2003 | |||||
| 010 | 10357886 | RADIO, AM/FM STEREO & CLK & CD PLYR (INCLS 11-15) (CODE WAET) (ACDelco #10357886) [РАДИО СД] | N257 (06) (UC6) | 2003-2003 | 01 | узнать цену | |
| 011 | 09354886 | KNOB, RDO TONE CONT (PART OF 10, 16) (AUDIO) (ACDelco #9354886) | N257 (06) (UB1) | 2003-2003 | 01 | узнать цену | |
| 011 | 12204874 | KNOB, RDO TONE CONT (PART OF 10, 16) (AUDIO) (ACDelco #12204874) | N257 (06) (UC6) | 2003-2003 | 01 | узнать цену | |
| 012 | 12201805 | KNOB, RDO VOL CONT (PART OF 10, 16) (RING) | N257 (06) (UB1) | 2003-2003 | 01 | узнать цену | |
| 012 | 12205116 | KNOB, RDO VOL CONT (PART OF 10, 16) | N257 (502, 50D) | 2003-2003 | 02 | узнать цену | |
| 013 | 12210421 | PUSHBUTTON, RDO PWR (PART OF 10, 16) (9.652) | N257 (06) (UC6) | 2003-2003 | 01 | узнать цену | |
| 013 | 12210421 | PUSHBUTTON, RDO PWR (PART OF 10, 16) | N257 (06) (UC6) | 2003-2003 | 01 | узнать цену | |
| 013 | 12215318 | PUSHBUTTON, RDO PWR (PART OF 10, 16) | N257 (06) (UB1) | 2003-2003 | 01 | узнать цену | |
| 014 | 12201802 | KNOB, RDO TUNING CONT (PART OF 10, 16) (RING SOFT TOUCH AS MOLDED) (ACDelco #12201802) | N257 (06) | 2003-2003 | 01 | узнать цену | |
| 015 | 12210422 | PUSHBUTTON, RDO RECALL (PART OF 10, 16) | N257 (06) (UC6) | 2003-2003 | 01 | узнать цену | |
| 016 | 10356164 | RADIO, AM/FM STEREO & CLK & T/PLYR & CD PLYR (INCLS 11-15) (CODE WAEZ) (ACDelco #10356164) (REQUIRES DEALER REPROGRAMMING) [РАДИО] | N257 (06) (UB1) | 2003-2003 | 01 | узнать цену | |
| 017 | 11589183 | NUT, RDO SPKR AMPF (PUSH-IN 6.3 SQ HOLE) (NYLON) (W/SEAL) (8.932) | N257 (06) | 2003-2003 | 04 | узнать цену | |
| 017 | 17988488 | NUT, RDO SPKR AMPF (SILVER) (4.2 X 1.41) (PUSH-IN FOR 12MM SQ HOLE) (10.252) | N2 | 2003-2003 | 04 | узнать цену |
